Descrption

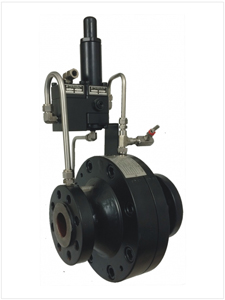

The pressure regulator model HORUS was designed to meet varied applications and to work with several process service conditions. It has outstanding applications with high differential pressure combined with high process flow an high pressure. It are typical installations with these characteristics the natural gas transportation and delivery points where occurs custody transference. It is also common to utilize with Distribution Stations of natural gas and other gases non-corrosive.

The pressure regulator Horus is pilot operated and has axial flow what results in low noise level as well high flow capacity. Beyond this, the double diaphragm pilots supplied with the valve allow accuracy in set pressure up to 1%.
The construction design meets the active (fail open) / monitor (fail close) configuration. The set of piston and seat was designed to proportionate high flow rangeability to the pressure regulator.

Technical Specifications

Materials:

• Body: Carbon Steel ASTM
• Internals: Stainless Steel
• Seals: Buna N

Connections:

• 1'', 2'', 3'', 4'', 6'', 8'' and 10''
• Flanged ANSI 150#RF up to 900#RF
• Other connections and sizes under consult.

Operation Limits

• Temperature: -10°C to +60°C
• Regulating: 0.7 to 80 bar

Manual

MI-18 Operation Manual - Horus - English - Rev05

Catalogs

MI-18 Pressure Regulator - HORUS - POR - 072013

 MI-18 Pressure Regulator - HORUS - ENG_ESP - 092019

Documents

Schematic - HORUS - Active Monitor System
Pressure Regulator Valve Horus ND2'' PN16 (3D CAD STEP)
Pressure Regulator Valve Horus ND3'' PN16 (3D CAD STEP)
