Descrption

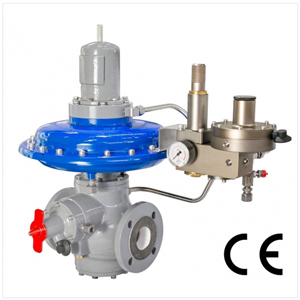

Brise Plus Series is recognized by high flow capacity and excellent outlet pressure accuracy. It was designed with balanced internals assuring stability of pressure control even in case of inlet pressure variation. Body construction allows to incorporate slam shut valve for overpressure shutoff resulting in final equipment with excellent performance and safety. Depending of application during flow consumption it is common to have changes of flow rate; Brise Plus Series has the characteristic of fast response assuring that gas will be delivered without variation of set pressure.

The pressure regulator Brise Plus has CE Stamp.

Technical Specifications

Materials:

• Body: Ductile Iron
• Internals: Brass / Stainless Steel
• Seals Buna N

Connections:

• 1'', 2'', 3''
• Thread female NPT / BSP or Flangs ANSI 150#RF / DIN PN 16
• Other connections and sizes under consult.

Operation Limits:

• Temperature: -10°C to +60°C
• Regulación: 0.020 to 4.0 bar
• Shutoff: 0.025 to 3.5 bar

Manual

MI-23 Operating Manual - Brise Plus - Portuguese - Rev04
MI-23 Operation Manual - Brise Plus - English - Rev07

Catalogs

MI23- PRESSURE REGULATOR VALVE BRISE PLUS - POR_ENG - 062019

Documents

Pressure Regulator Valve Brise Plus ND2'' PN16 (3D CAD STEP)
Pressure Regulator Valve Brise Plus ND3'' PN16 (3D CAD STEP)
Pressure Regulator Valve Brise Plus ND2'' 150# (3D CAD STEP)
Pressure Regulator Valve Brise Plus ND3'' 150# (3D CAD STEP)
Pressure Regulator Valve Brise Plus ND1'' PN16 (3D CAD STEP)
